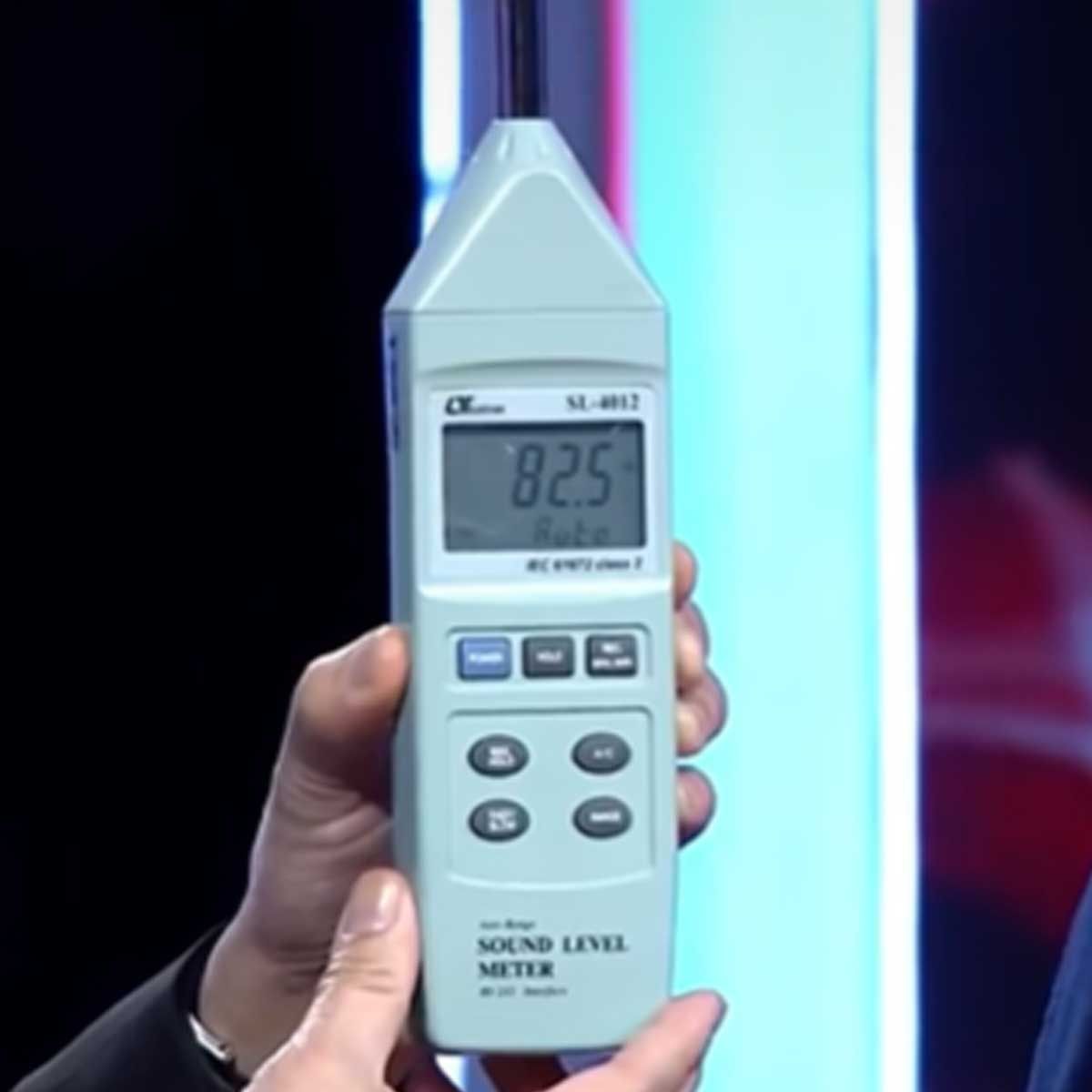

Lutron SL-4012 เครื่องวัดเสียง Class 2
เครื่องวัดเสียง เป็นเครื่องมือที่เหมาะสำหรับการใช้งานประจำวัน เช่น การวัดระดับเสียงในสถานบันเทิง, เสียงเครื่องจักร, เสียงจากระบบการเผาไหม้ในโรงงานอุตสาหกรรม, เสียงจากการขนส่งคมนาคม หรือแม้แต่เสียงสภาพแวดล้อมต่างๆ

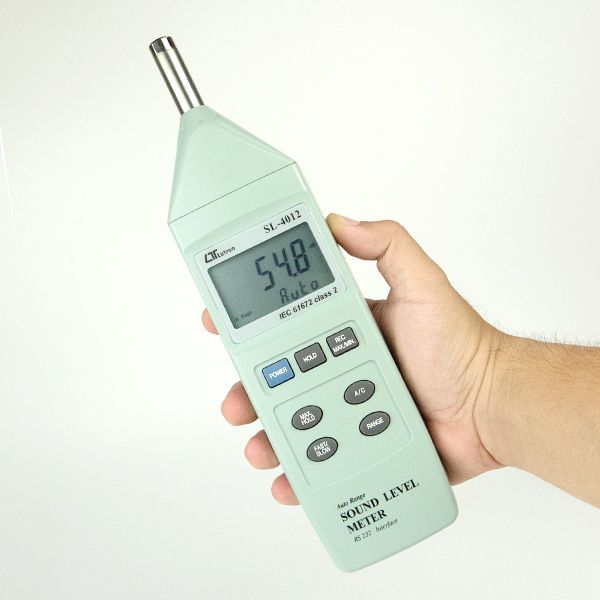

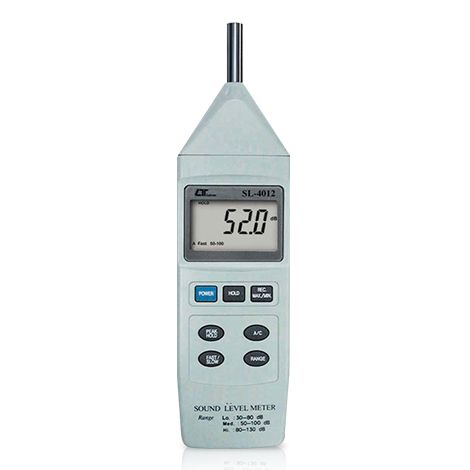

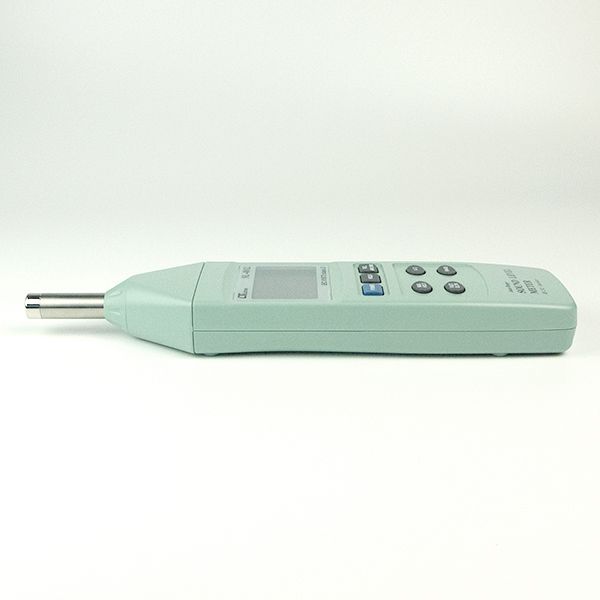

▲ ภาพแสดงคุณลักษณะและขนาดของตัวเครื่อง

▲ ช่องสำหรับเชื่อมต่อ RS232 และ AC output

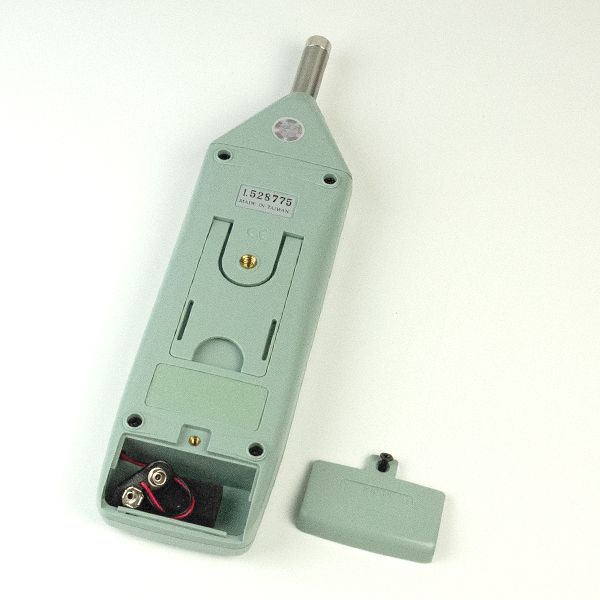

▲ ช่องใส่แบตเตอรี่ที่ด้านหลังของตัวเครื่อง
| Display | LCD size : 52 x 32 mm (Liquid crystal display), 5 digits with annunciator |
| Function | dB (A & C frequency weighting), Time weighting(Fast, Slow), Hold, Memory (Max. & Min.), Peak hold, AC & RS232 output |
| Measurement Range | 30 to 130 dB |
| Resolution | 0.1 dB |
| Accuracy | Frequency weighting meet IEC 61672 class 2, calibrating input signal on 94 dB(31.5 Hz to 8 kHz), then the accuracy of frequency weighting is specified as following :
|
| Frequency Weighting Network | Characteristics of A & C |
| Frequency | 31.5 Hz to 8,000 Hz |
| Calibrator | B & K (Bruel & Kjaer), multi-fuction acoustic calibrator, model : 4226 |
| Microphone type | Electric condenser microphone |
| Size of microphone | 1/2 inch standard size |
| Range selector | ■ Auto range : 30 to 130 dB ■ Manual range : 3 range, 30 to 80 dB, 50 to 100 dB, 80 to 130 dB |
| Time Weighting | Fast – t= 200 ms, Slow – t = 500 ms |
| Output Signa | ■ AC output – AC 0.5 Vrms corresponding to each range step. Output impedance – 600 ohm ■ RS232 output |
| Power Supply | DC 9V battery |
| Dimension/ Weight | 268 x 68 x 29 mm/ 295 g |
