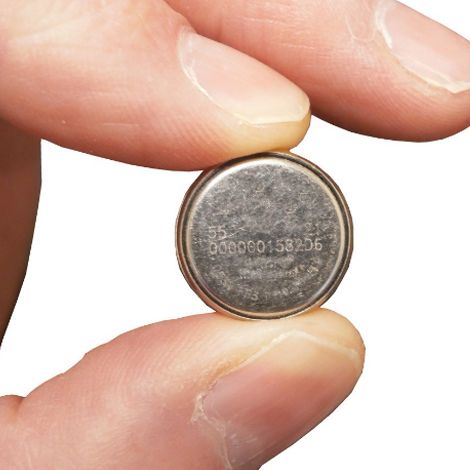

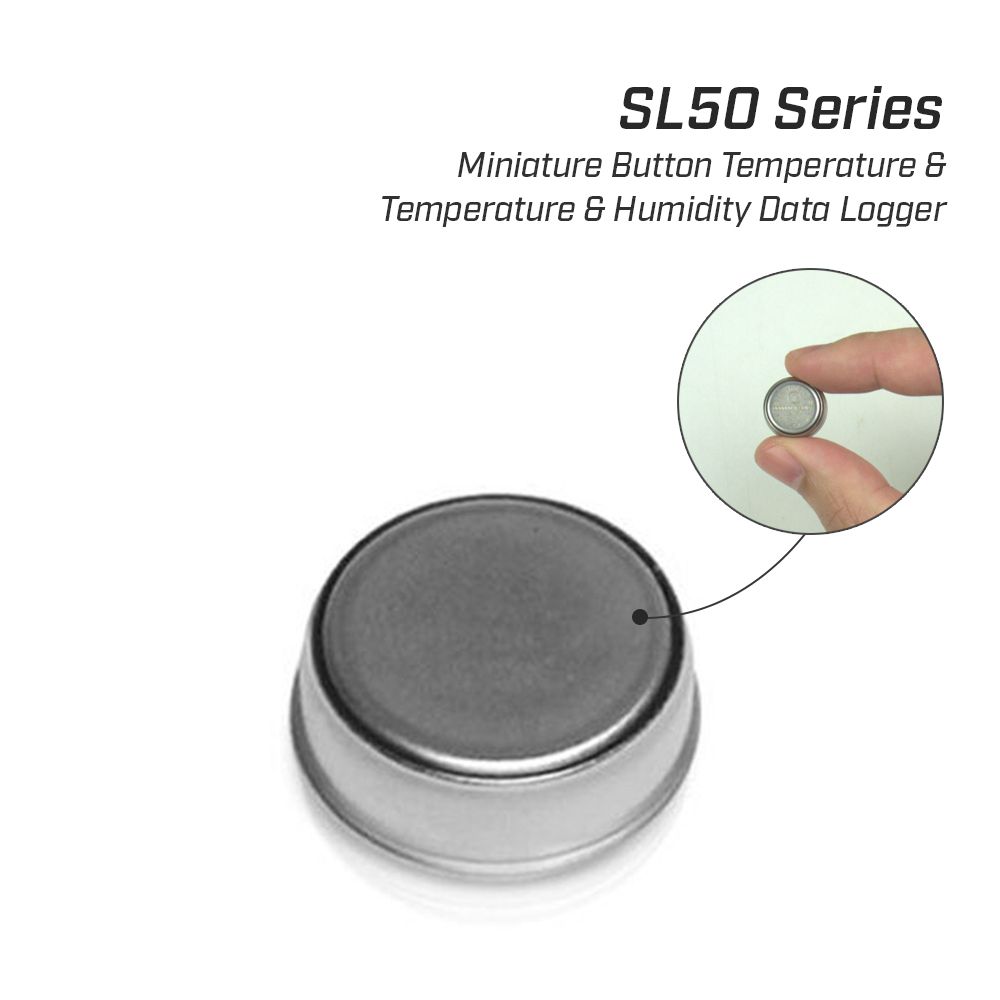

Signatrol SL50 Series กระดุมบันทึกอุณหภูมิ (Miniature Temperature & RH Data Loggers) | มาตรฐาน IP55
กระดุมบันทึกอุณหภูมิสามารถบันทึกข้อมูลได้ถึง 2,048 ถึง 8192 ค่า ตัวกระดุมมาตรฐานกันน้ำ IP55 ขนาดเพียงกระดุม ø17 x 6 mm. ทำจาก Stainless Steel (305) แข็งแรงทนทานอายุการใช้งานแบตเตอรี่ 10 ปี (หรือให้การบันทึกข้อมูลได้ประมาณ 1 ล้านข้อมูล)
ในรุ่นที่ ระบุคำต่อท้าย A จะมาพร้อม Calibration certificate 3 point มาตรฐาน UKAS (United Kingdom Accreditation Service) ทดสอบและสอบเทียบตามมาตรฐานสากล
ยี่ห้อ Signatrol, United Kingdom
Signatrol SL50 Series มีรุ่นดังต่อไปนี้
| Model | Detail | Accuracy |
| SL51T | กระดุมบันทึกอุณหภูมิ (-40 to 85°C) |
|
| SL51T-A | กระดุมบันทึกอุณหภูมิ (-40 to 85°C) มาพร้อม Calibration certificate 3 point มาตรฐาน UKAS | |
| SL52T | กระดุมบันทึกอุณหภูมิ (-40 to 85°C) |
|
| SL52T-A | กระดุมบันทึกอุณหภูมิ (-40 to 85°C) มาพร้อม Calibration certificate 3 point มาตรฐาน UKAS | |
| SL53T | กระดุมบันทึกอุณหภูมิ (0 to 125°C) |
|
| SL53T-A | กระดุมบันทึกอุณหภูมิ (0 to 125°C) มาพร้อม Calibration certificate 3 point มาตรฐาน UKAS |
|
| SL54TH | กระดุมบันทึกอุณหภูมิ (-20 to 85°C), อุณหภูมิความชื้น (0 to 100%RH) |
|
| SL54TH-A | กระดุมบันทึกอุณหภูมิ (-20 to 85°C), อุณหภูมิความชื้น (0 to 100%RH) มาพร้อม Calibration certificate 3 point มาตรฐาน UKAS |
|
| SL55T-A | กระดุมบันทึกอุณหภูมิ (15 to 140°C) มาพร้อม Calibration certificate 3 point มาตรฐาน UKAS |
|
| SL56T | กระดุมบันทึกอุณหภูมิ (-40 to 85°C) รองรับการบันทึกค่าอุณหภูมิได้สูงสุดถึง 125,440 ข้อมูล |
|
| SL56T-A | กระดุมบันทึกอุณหภูมิ (-40 to 85°C) มาพร้อม Calibration certificate 3 point มาตรฐาน UKAS รองรับการบันทึกค่าอุณหภูมิได้สูงสุดถึง 125,440 ข้อมูล |
|
การตั้งค่าและโอนถ่ายข้อมูล Signatrol SL50 Series
ในการใช้งานกระดุมบันทึกอุณหภูมิ Signatrol SL50 Series นั้น จำเป็นต้องใช้งานร่วมกับโปรแกรม TempIT และ SL50-USB เพื่อใช้ในการเชื่อมต่อเพิ่มตั้งค่าก่อนเริ่มการบันทึกอุณหภูมิ และการโอนถ่ายค่าอุณหภูมิที่ถูกบันทึกไว้มาอ่านค่าหรือวิเคราะห์ต่อไปในโปรแกรม TempIT-PRO

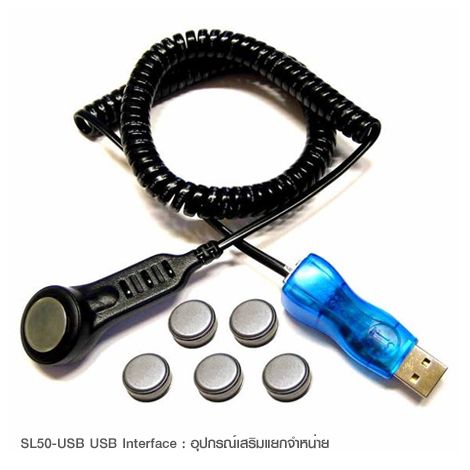

- SL50-USB USB Interface (อุปกรณ์แยกจำหน่าย) สำหรับเชื่อมต่อตัวบันทึกข้อมูลกับคอมพิวเตอร์
- TempIT ซอฟต์แวร์ในการวิเคราะห์และตั้งค่าการทำงานของกระดุมบันทึกอุณหภูมิ SL50 Series สามารถ Download TempIT-LITE Free คลื๊ก!!
หรือหากต้องการฟังก์ชั่นของซอฟแวร์ที่สูงขึ้น ก็สามารถซื้อโปรแกรม TempIT-PRO (อุปกรณ์แยกจำหน่าย)
SOFTWARE SPECIFICATIONS
| Functions | TempIT-LITE | TempIT-Pro |
| Issuing of SL50 Series Data Loggers | ||
| View and set owner and user manifest | ||
| View graph | ||
| X-Y Zoom | ||
| Auto scale of Y axis | ||
| Change units between °C and °F | ||
| Print Graph in PDF format | ||
| Export Data in CSV format | ||
| View Data in a tabular format | ||
| Open multiple logger files and overlay on the same graph | ||
| Add comments to the graph with pointers | ||
| “Show Measure” function to calculate rate of change | ||
| Automatic Calculation of F0, A0, PU’s | ||
| Automatic Calculation of Mean Kinetic Temperature (MKT) | ||
| Carry out “time above” temperature / value test | ||
| PDF Print out includes all data in tabular format | ||
| Can be used as part of a FDA21 CFR Part 11 system |
| Measuring Range | -40 to 85°C |
| Resolution | 0.5°C |
| Accuracy | ±1.0°C from -30°C to +70°C ±1.3°C outside of this range |
| Power | Internal Battery |
| Battery Life | Typically 10 years at 20°C. Detailed battery life calculator is available on the Signatrol website |
| Battery Type | Panasonic BR1225 (non replaceable / non rechargeable) |
| Sample Rate | 1 minute to 255 minutes in one minute steps |
| Number of Readings Stored | 2048 |
| Reusable When Memory Full | Yes |
| Response Time |
63% step change – 90 seconds in circulating air 10% to 90% step change – 180 seconds in circulating air |
| Waterproofing | IP55 – Protected against ingress of dust and protected against low-pressure jets of water’ Please see waterproof enclosures if the product is to be submerged in liquid |
| Delayed Start | Yes, you can specify a time and date to start logging up to 45 days in advance with one minute resolution |
| Software Alarms | Yes, high and low alarms can be specified in the software |
| Material | 305 Stainless Steel |
| Dimensions | 17mm diameter x 6mm high |
| Certifications (Only for SL51T-A) |
FDA 21 CFR Part 11 EN12830 Meets UL#913 (4th Edit.); Intrinsically Safe Apparatus, approval under Entity Concept for use in Class I, Division 1, Group A, B, C, and D Locations EEx ia IIC T4 (-40°C to +80°C) |
| Measuring Range | -40 to 85°C |
| Resolution | 0.5°C (low resolution mode) 0.07°C (high resolution mode) |
| Accuracy | ±0.5°C (from -10 to 65°C) ±1.0°C (outside of this range) |
| Power | Internal Battery |
| Battery Life | Typically eight years at +30°C with a 10 minute sample rate |
| Battery Type | Panasonic BR1225 (non replaceable / non rechargeable) |
| Sample Rate | 2 seconds to 24 hours 2 seconds to 1 minute in 5 second steps 1 minute to 1 hour in 1 minute steps 1 hour to 24 hours in 1 hour steps |
| Number of Readings Stored | 8192 (low resolution mode) 4096 (high resolution mode) |
| Reusable When Memory Full | Yes |
| Response Time |
63% step change – 90 seconds in circulating air 10% to 90% step change – 180 seconds in circulating air |
| Waterproofing | IP55 – Protected against ingress of dust and protected against low-pressure jets of water’ Please see waterproof enclosures if the product is to be submerged in liquid |
| Delayed Start | Yes, you can specify a time and date to start logging up to 1 year in advance with one minute resolution |
| Software Alarms | Yes, high and low alarms can be specified in the software |
| Material | 305 Stainless Steel |
| Dimensions | 17mm diameter x 6mm high |
| Certifications (Only for SL52T-A) |
FDA 21 CFR Part 11 EN12830 Meets UL#913 (4th Edit.); Intrinsically Safe Apparatus, approval under Entity Concept for use in Class I, Division 1, Group A, B, C, and D Locations EEx ia IIC T4 (-40°C to +80°C) |
| Measuring Range | +0°C to +125°C |
| Resolution | 0.5°C in low resolution mode 0.07°C in high resolution mode |
| Accuracy | ±0.2°C from +80°C to +125°C |
| Power | Internal Battery |
| Battery Life | Typically 1 year at 80°C Detailed battery life calculator is available on the Signatrol website |
| Battery Type | Panasonic BR1225A (non replaceable / non rechargeable) |
| Sample Rate | 2 seconds to 24 hours 2 seconds to 1 minute in 5 second steps 1 minute to 1 hour in 1 minute steps 1 hour to 24 hours in 1 hour steps |
| Number of Readings Stored | 8192 (low resolution mode) 4096 (high resolution mode) |
| Reusable When Memory Full | Yes |
| Waterproofing | IP55 – Protected against ingress of dust and protected against low-pressure jets of water Please see waterproof enclosures if the product is to be submerged in liquid |
| Delayed Start | Yes, you can specify a time and date to start logging up to 1 year in advance with one minute resolution |
| Software Alarms | Yes, high and low alarms can be specified in the software |
| Material | 305 Stainless Steel |
| Dimensions | 17mm diameter x 6mm high |
| Certifications (Only for SL53T-A) |
FDA 21 CFR Part 11 EN12830 Meets UL#913 (4th Edit.); Intrinsically Safe Apparatus, approval under Entity Concept for use in Class I, Division 1, Group A, B, C, and D Locations EEx ia IIC T4 (-40°C to +80°C) |
| Measuring Range | -40°C to +85°C (Storage) -20°C to +85°C (Operating) |
| Resolution | 0.5°C in low resolution mode 0.07°C in high resolution mode |
| Accuracy | ±0.5°C from -10°C to +70°C |
| Relative Humidity Accuracy | ±2% RH |
| Relative Humidity Resolution | Low res mode: 0.64%RH High res mode: 0.04%RH |
| Power | Internal Battery |
| Battery Life | Typically 5 years at 10 minute sample rate. Detailed battery life calculator is available on the Signatrol website |
| Battery Type | Panasonic BR1225 (non replaceable / non rechargeable) |
| Sample Rate | 2 seconds to 23 hours |
| Number of Readings Stored | 8192 (low resolution mode) 4096 (high resolution mode) |
| Respone Time | Respone times in moving air. 63% time constant Temperature: 1 Min 29 Seconds Relative Humidity: 3 Min 44 Seconds 10-90% time constant Terperature: 2 Min 50 Seconds Relative Humidity: 9 Min 54 Seconds |
| Reusable When Memory Full | Yes |
| Waterproofing | IP55 – Protected against ingress of dust and protected against low-pressure jets of water Please see waterproof enclosures if the product is to be submerged in liquid |
| Delayed Start | Yes, you can specify a time and date to start logging up to 1 year in advance with one minute resolution |
| Software Alarms | Yes, high and low alarms can be specified in the software |
| Material | 305 Stainless Steel |
| Dimensions | 17mm diameter x 6mm high |
| Certifications (Only for SL54TH-A) |
FDA 21 CFR Part 11 EN12830 Meets UL#913 (4th Edit.); Intrinsically Safe Apparatus, approval under Entity Concept for use in Class I, Division 1, Group A, B, C, and D Locations EEx ia IIC T4 (-40°C to +80°C) |
| Measuring Range | 15°C to 140°C |
| Resolution | 0.5°C in low resolution mode 0.07°C in high resolution mode |
| Accuracy | ±0.2°C from +110°C to +140°C ±0.5°C from +80°C to +110°C ±1.0°C from +15°C to +80°C Calibration certificates included with the device use calibration points of +110°C, +121°C and +135°C. Other calibration points are available on request. |
| Power | Internal Battery |
| Battery Life | Typically 150 hours accumulative or 150 cycles in excess of 85°C |
| Battery Type | Panasonic BR1225A (non replaceable / non rechargeable) |
| Sample Rate | 1 second to 24 hours 1 second to 1 minute in 5 second steps 1 minute to 1 hour in 1 minute steps 1 hour to 24 hours in 1 hour steps |
| Number of Readings Stored | 8192 in low resolution mode 4096 in high resolution mode |
| Respone Time | 63% step change – 90 seconds in circulating air 10% to 90% step change – 180 seconds in circulating air |
| Reusable When Memory Full | Yes. |
| Waterproofing | IP55 – Protected against ingress of dust and protected against low-pressure jets of water’ Please see waterproof enclosures if the product is to be submerged in liquid |
| Delayed Start | Yes, you can specify a time and date to start logging up to 1 year in advance with one minute resolution |
| Software Alarms | Yes, high and low alarms can be specified in the software |
| Material | 305 Stainless Steel |
| Dimensions | 17mm diameter x 6mm high |
| Certifications | See SL51T / SL51T-A |
