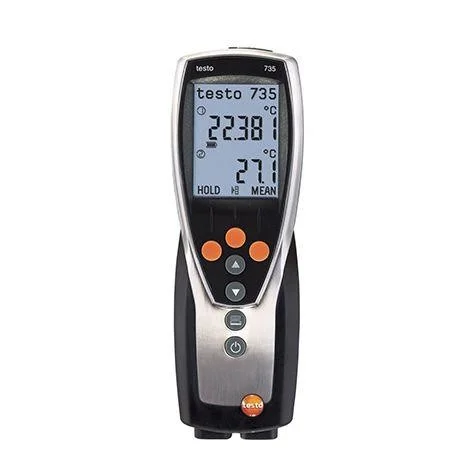

Testo-735-1 เครื่องวัดอุณหภูมิดิจิตอลแบบ 3 Channel

เครื่องวัดอุณหภูมิดิจิตอลแบบ 3 Channel

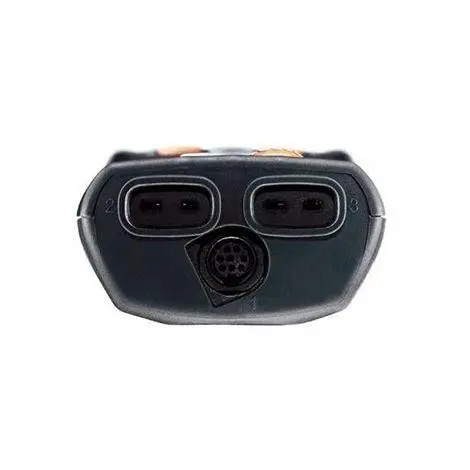

เครื่อง Testo 735-1 เป็นเครื่องวัดที่มีขนาดกะทัดรัด พร้อมช่อง Probe สำหรับหัววัด Pt100 ที่มีความแม่นยำสูงและ 2 ช่อง Probe แบบสำหรับหัววัดอุณหภูมิแบบเทอร์โมคัปเปิลที่รวดเร็ว

สามารถอ่านค่าอุณหภูมิได้ถึง 3 หัววัดอุณหภูมิในหน้าจอแสดงผลที่ชัดเจน ส่งข้อมูลการวัดแบบ Radio หรือ Wireless
สามารถเก็บข้อมูลได้ทั้งหมด 6 Channels ความแม่นยำของระบบ 0.05 องศาเซลเซียสที่ความละเอียด 0.001 องศาเซลเซียส
ระบบวัดนี้เหมาะอย่างยิ่งสำหรับการใช้เป็นมาตรฐานการทำงาน ข้อมูลที่วัดโดย Testo 735-1 สามารถส่งผ่านอินฟราเรด (Infrared) ไปยังเครื่องพิมพ์ Testoได้ เพื่อการจัดทำเอกสาร

แสดงผล, บันทึกและพิมพ์(Print) ค่า Delta T, Min, Max และ Mean
เสียงเตือน (Alarm) เมื่อค่าเกินที่กำหนด
มาตรฐาน IP65

ช่วงการวัด

Temperature – Pt100

Measuring Range -20 to +230 °C (-328.0° to 1472.0 °F)
Accuracy ±0.2 °C (-100 to +199.9 °C) / ±0.4 °F (-148.0° to 391.8 °F) // ±0.2 % of mv (Remaining Range)
Resolution 0.05 °C / 0.05 °F

Temperature – Type K TC

Measuring Range -200 to +1370 °C (-328.0° to 2498.0 °F)
Accuracy ±0.3 °C (-60 to +60 °C) /±0.5 °F (-76.0° to 140.0 °F) / ±(0.4 °F + 0.3 % of mv) (Remaining Range) / ±(0.2 °C + 0.3 % of mv) (Remaining Range)
Resolution 0.1 °C / 0.1 °F

Temperature – TC Type T (Cu-CuNi)

Measuring Range -200 to +400 °C (-328.0° to 752.0 °F)
Accuracy ±0.3 °C (-60 to +60 °C) / ±0.5 °F (-76.0° to 140.0 °F) / ±(0.4 °F + 0.3 % of mv) (Remaining Range) / ±(0.2 °C + 0.3 % of mv) (Remaining Range)
Resolution 0.1 °C / 0.1 °F

Temperature – Type J TC

Measuring Range -200 to +1000 °C (-328.0° to 1832.0 °F)
Accuracy ±0.3 °C (-60 to +60 °C) / ±0.5 °F (-76.0° to 140.0 °F) / ±(0.4 °F + 0.3 % of mv) (Remaining Range) / ±(0.2 °C + 0.3 % of mv) (Remaining Range)
Resolution 0.1 °C / 0.1 °F

Temperature – TC Type S (Pt10Rh-Pt)

Measuring Range 0 to +1760 °C (32.0° to 3200.0 °F)
Accuracy ±1 °C (0 to +1760 °C) / ±1.8 °F (32.0° to 3200.0 °F)
Resolution 1 °C / 1.0 °F

Power Supply

Alkaline, type AA

ขนาดสินค้า

Dimension 220 x 74 x 46 mm. (9 x 3 x 2 in.)
Weight 428 g. (15 oz.)

อุปกรณ์ที่มาในชุด

เครื่องวัดอุณหภูมิ Testo 735-1 (3 Channel) พร้อมสัญญาณเตือน
Calibration Protocol และแบตเตอรี่

อุปกรณ์เสริม

Air Probe (Type K)

Rugged air probe, T/C Type K // No. 0602 1793
Robust, affordable air probe, T/C Type T // No. 0603 1793
Efficient, rugged air probe, Pt100 / No. 0609 1773

Air and Immersion / Penetration RFID Probe

T/C probe head for air/immersion/penetration measurement (T/C Type K) // No. 0602 0293

Food Probe

Waterproof food probe made of stainless steel (IP65) / No. 0602 2292
Waterproof standard immersion/penetration probe, T/C Type T / No. 0603 1293
Stainless steel food probe (IP67) with PUR cable, T/C Type T / No. 0603 2192
Robust food penetration probe with special handle, IP 65, reinforced cable (PUR) and reinforced protection from buckling / No. 0603 2492
Waterproof precision immersion/penetration probe without visible penetration hole, T/C Type T / No. 0603 2693
Frozen food probe, corkscrew design, Tmax handle and cable +158°F / No. 0603 3292
Accurate, waterproof food probe (IP67), made of stainless steel, with Teflon cable / No. 0603 3392
Rugged, accurate food probe (IP 65), stainless steel, PUR cable can be used at up to +180°F, IP 54 plug-in connection / No. 0609 2272
Flexible incoming goods probe, ideal for quick temperature measurements on incoming goods / No. 0628 0023
Waterproof super-fast needle probe, highly accurate measurements without visible penetration hole. Specially for food, ideal for hamburgers, steaks, pizza, eggs etc., T/C Type K / No. 0628 0026
Waterproof, super-quick needle probe for measurements without visible penetration hole. Ideal for hamburgers, steaks etc. / No. 0628 0027
Quick needle probe to monitor cooking processes in oven. Measurements on vacuum products also possible if special sealing strip is used / No. 0628 0030
Waterproof rugged immersion/penetration probe with metal protection hose Tmax 450°F, e.g. for checking the temperature in cooking oil / No. 0628 1292

Immersion / Penetration Probe

Flexible, low-mass immersion measurement tip, ideal for measurements in small volumes such as petri dishes, or for surface measurements (e.g. attached with adhesive tape), TC Type K / No. 0602 0493
Efficient and fast-action immersion probe, waterproof, T/C Type K / No. 0602 0593
Waterproof immerstion/penetration probe, T/C Type K / No. 0602 1293
Super-quick, waterproof immersion/penetration probe, T/C Type K / No. 0602 2693
Flexible immersion measurement tip for measurements in air/exhaust gases (not suitable for measurements in smelters), TC Type K -328 to +2372 °F, 39″ long, Ø 0.12″ / No. 0602 5693
Immersion tip, flexible, Measuring range: -328° to 1832 °F (-200° to 1000 °C) / No. 0602 5792
Immersion tip, flexible / No. 0602 5793
Rugged, waterproof Pt100 immersion/penetration probe / No. 0609 1273
Highly accurate Pt100 immersion/penetration probe incl. calibration protocol (test points 0 °C and +157 °C) / No. 0614 0235

Immersion / Penetration RFID Probe

Wireless immersion/penetration probe, NTC, approved for USA / No. 0613 1002

Laboratory Probes

Laboratory probe, glass-coated, exchangeable glass pipe, resistant to corrosive substances / No. 0609 7072

Surface RFID Probe

Wireless handle for attachable plug-in probe heads, incl. T/C adapter, approved for USA & Canada / No. 0554 0191
T/C probe head for surface measurement (T/C Type K) / No. 0602 0394

Surface probes

Spare measuring head with thermocouple strip for temperature probe with clamping bracket / No. 0602 0092
Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K / No. 0602 0193
Fast-action surface probe with spring thermocouple , for uneven surfaces, short-term range to +932°F, T/C Type K / No. 0602 0393
Efficient, waterproof surface probe with small measurement head for flat surfaces, T/C Type K / No. 0602 0693
Fast-action surface probe with spring thermocouple for uneven surfaces, short-term to +932°F, T/C Type K / No. 0602 0993
Waterproof surface probe with widenend measurement tip for flat surfaces, T/C Type K / No. 0602 1993
Flat head surface probe with telescopic handle (max. 24 in.) for hard-to-reach areas, T/C Type K / No. 0602 2394
Pipe clamp probe for pipe diameter 0.2 to 2.5”, with replaceable measuring head. Measuring range to 536 °F short-term / No. 0602 4592
Clamp probe for measurements on pipes, pipe diameter 0.6 to 1” (max. 1”), meas. range to +266 °F short-term / No. 0602 4692
Magnetic probe, adhesive force approx. 20 N, with magnets, for measurements on metal surfaces / No. 0602 4792
Magnetic probe (TC Type K) / No. 0602 4892
Waterproof surface probe with widened measurement tip for flat surfaces, T/C Type T / No. 0603 1993
Rugged, waterproof surface temperature probe, Pt100 / No. 0609 1973
Temperature probe with Velcro (TC Type K) / No. 0628 0020
Stable, robust surface probe with PTFE standing area and metal protection hose Tmax +230 °C for cooking surfaces, heating and baking trays, T/C Type K / No. 0628 9992
Thermocouple with T/C adapter, flexible, 32 in. long, fibre glass, T/C Type K / No. 0602 0644
Thermocouple with T/C adapter, flexible, 60 in. long, fibre glass, T/C Type K / No. 0602 0645
Thermocouple with T/C adapter, flexible, 60 in. long, PTFE, T/C Type K / No. 0602 0646

Additional Accessories

Plug-in mains adapter, 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz / No. 0554 0447
Handle for attachable measurement tips / No. 0409 1092
Silicone heat paste (14g), Tmax = +260°C / No. 0554 0004
Extension cable, 5m, for thermocouple probe Type K / No .0554 0592
Service case for measuring instrument, probe and accessories, dimensions 454 x 319 x 135 mm. / No. 0516 1035
Service case for measuring instrument, probes and accessories, dimensions 520 x 380 x 120 mm. / No. 0516 0735

Certificates

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -18 / 0 / +60 °C / No. 0520 0001
ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: 0 / +150 / +300 °C / No. 0520 0021
4-point adjustment / No, 0520 0142

DAkkS temperature calibration certificate for air/immersion probes; with 3 measuring points: -20 / 0 / +60 °C / No. 0520 0211
4-point adjustment / No. 0520 0241
DAkkS temperature calibration certificate for surface probes; with 3 measuring points: +100 / +200 / +300 °C / No. 0520 0271
ISO temperature calibration certificate for surface probes; with 3 measuring points: +60 / +120 / +180 °C / No. 0520 0071

Printer and Accessories

External fast charger for 1-4 AA rech. batteries, incl. 4 Ni-MH rech. batteries with individual cell charging and charge control display, incl. impulse trickle charging, integrated discharge function, with built-in international mains plug, 100-240 V, 300 mA, 50/60 Hz/ /

No. 0554 0610
Testo fast printer IrDA with wireless infrared interface; 1 roll thermal paper; 4 AA batteries / No. 0554 0549
Spare thermal paper for printer, permanent ink / No. 0554 0568

Radio module for activation of radio option

Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU,
CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO / No. 0554 0188
Radio module for measuring instrument, 915.00 MHz FSK, approval for USA, CA, CL / No. 0554 0190

ข้อมูลจำเพาะ

Operating Temperature -20 to +50 °C (-4.0° to 122.0 °F)
Storage temperature -30 to +70 °C (-22.0° to 158.0 °F)
Housing ABS / TPE / Metal
Protection Class IP65
Standards EN 13485
