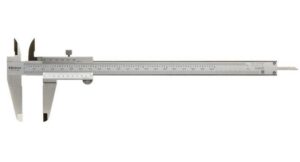

530-118 | VERNIER CALIPER – STANDARD MODEL 0-200mm/0-8″ | MITUTOYO

    VERNIER CALIPER – STANDARD MODEL with metric/inch double scale

    *High accuracy model: ±0.03mm

    Order No. 530-118

    ORDER NO. 530-118
    Range: 0-200mm/0-8″
    Depth bar: flat
    Mass: 180 g
    Graduation: 0,02 mm/ 0,001″
    Accuracy : ±0.05 mm
    Delivered: In a box
    Digital/Analog: Analog
    With upper locking screw: Yes
    Inch-Metric: Metric/Inch



    RANGE (MM) A B D E F H L OUSTSIDE JAW THICKNESS
    0 – 100 17 21.5 40 53.5 30 16 182 3
    0 – 150 17 21.5 40 53.5 30 16 229 3
    0 – 200 20.5 25 50 53.5 30 16 288 3
    0 – 300 22 27.5 64 66.5 36 20 404 3.8
    0 – 600 38 47 90 89 50 25 780 6
    0 – 1000 50 60 130 111 61 32 1240 8

    Note : Order No. 530-100 and No. 530-102 incorporate a round depth bar (ø1.9mm).

    The depth bar shown in the illustration above is a different type.

    Category: Tag:

      VERNIER CALIPER – STANDARD MODEL with metric/inch double scale

      *High accuracy model: ±0.03mm

      Order No. 530-118

      Range : 0-200mm/0-8″

      Description :

      This is a standard type of vernier caliper that offers you the following benefits:

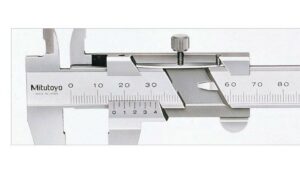

      • Main scale and vernier scale satin chrome finish gives you high readability.
      • Raised sliding surfaces
